IDIAL Deployment on AWS ECS Fargate

Overview

This document describes the complete setup of IDIAL on AWS ECS Fargate.

Region

We always and only deploy our applications in the eu-central-1 region (Frankfurt).

IDIAL consists of two containers running together as a single ECS task:

Container	Image	Port	Function
IDIAL	bxc2security/idial:v0.14	5000	REST API + PKI
Web_Backend	bxc2security/idial-web-backend:latest	5555	Web UI

Prerequisites

• AWS CLI installed and configured (aws configure)
• DockerHub account with access to the bxc2security repository

---

1. Configure Secrets Manager

All credentials are stored in AWS Secrets Manager. Three secrets are required.

1.1 DockerHub Credentials

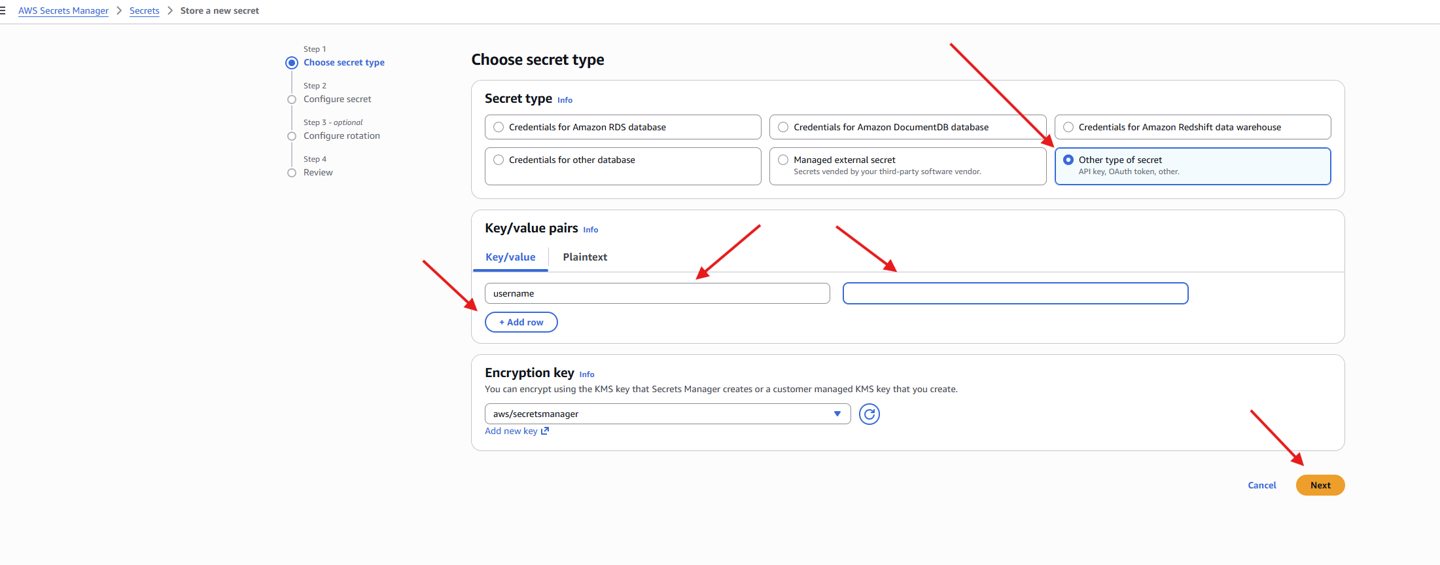

GUI: AWS Console → Secrets Manager → Store a new secret

• Secret type: Other type of secret
• Key/Value:
  • username → your DockerHub username (not email)
  • password → your DockerHub Personal Access Token (not your login password)
• Secret name: DockerHub

Create a Personal Access Token via: Docker Hub → Account Settings → Personal access tokens → Generate new token

Permission: Read-only is sufficient.

1.2 IDIAL PKCS8 Password

aws secretsmanager create-secret \
  --name idial/pkcs8-pw \
  --secret-string "YOUR_SECRET_VALUE" \
  --region eu-central-1

1.3 Web Backend Secret Key

aws secretsmanager create-secret \
  --name idial/web-secret-key \
  --secret-string "$(openssl rand -base64 32)" \
  --region eu-central-1

note

The resulting ARNs will include a random suffix (e.g. idial/pkcs8-pw-05u5Sl). This is expected and handled using wildcards in IAM policies.

---

2. Configure IAM Role

The ECS Task Execution Role requires access to all three secrets.

2.1 Verify Role

GUI: IAM → Roles → ecsTaskExecutionRole

If the role does not exist:

aws iam create-role \
  --role-name ecsTaskExecutionRole \
  --assume-role-policy-document '{
    "Version": "2012-10-17",
    "Statement": [{
      "Effect": "Allow",
      "Principal": {"Service": "ecs-tasks.amazonaws.com"},
      "Action": "sts:AssumeRole"
    }]
  }'

aws iam attach-role-policy \
  --role-name ecsTaskExecutionRole \
  --policy-arn arn:aws:iam::aws:policy/service-role/AmazonECSTaskExecutionRolePolicy

2.2 Add Secrets Manager Policy

aws iam put-role-policy \
  --role-name ecsTaskExecutionRole \
  --policy-name idial-secrets-access \
  --policy-document '{
    "Version": "2012-10-17",
    "Statement": [
      {
        "Effect": "Allow",
        "Action": "secretsmanager:GetSecretValue",
        "Resource": [
          "arn:aws:secretsmanager:eu-central-1:015955903887:secret:DockerHub*",
          "arn:aws:secretsmanager:eu-central-1:015955903887:secret:idial/pkcs8-pw*",
          "arn:aws:secretsmanager:eu-central-1:015955903887:secret:idial/web-secret-key*"
        ]
      }
    ]
  }' \
  --region eu-central-1

warning

The * wildcard is required because Secrets Manager appends a random suffix to secret ARNs.

---

3. Create ECS Cluster

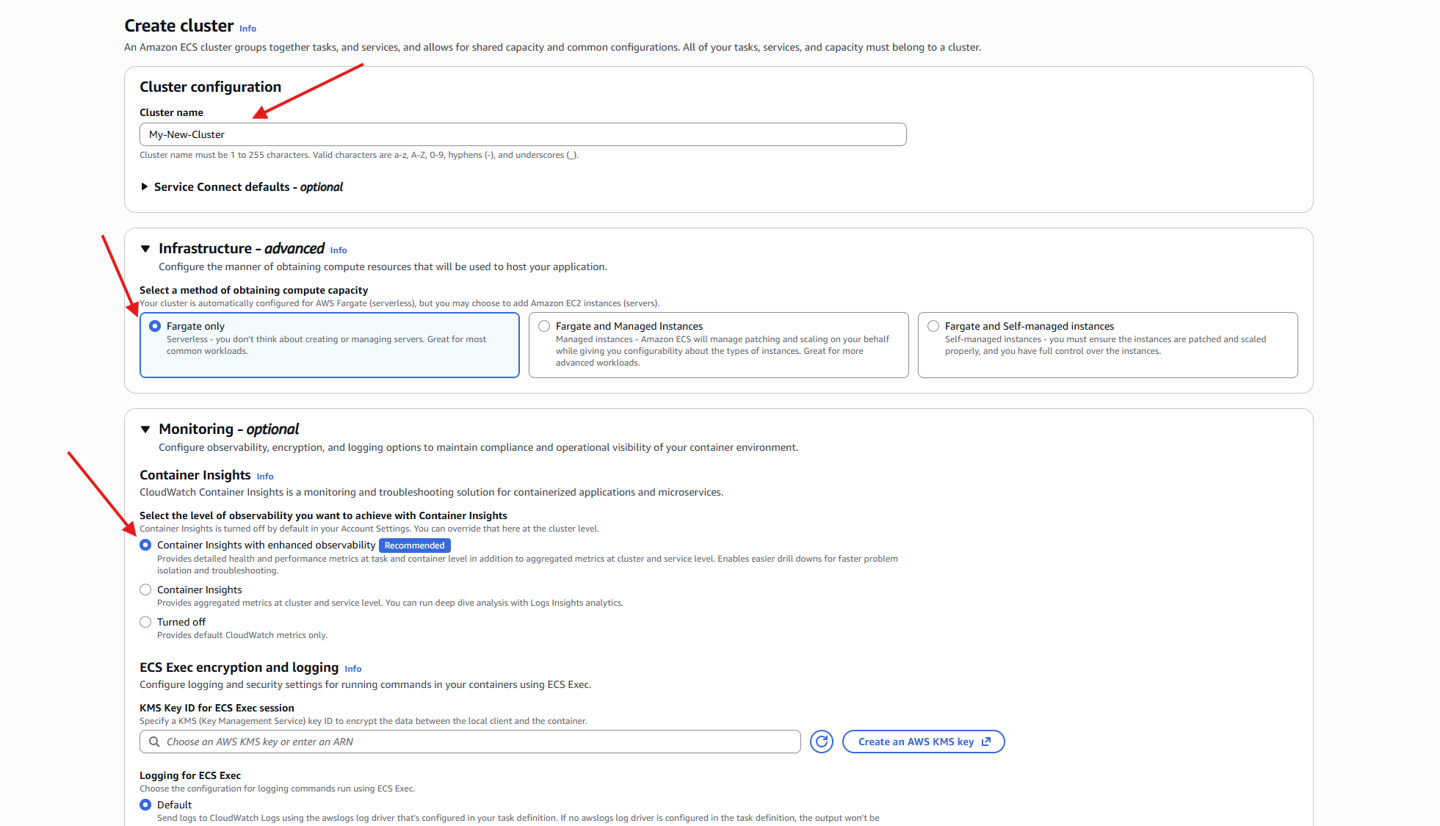

GUI: ECS → Clusters → Create Cluster

• Cluster name: IDIALCluster
• Infrastructure: AWS Fargate (serverless)

aws ecs create-cluster \
  --cli-input-json file://ecs-cluster.json \
  --region eu-central-1

---

4. Register Task Definition

The task definition defines both containers, environment variables, ports, and volumes.

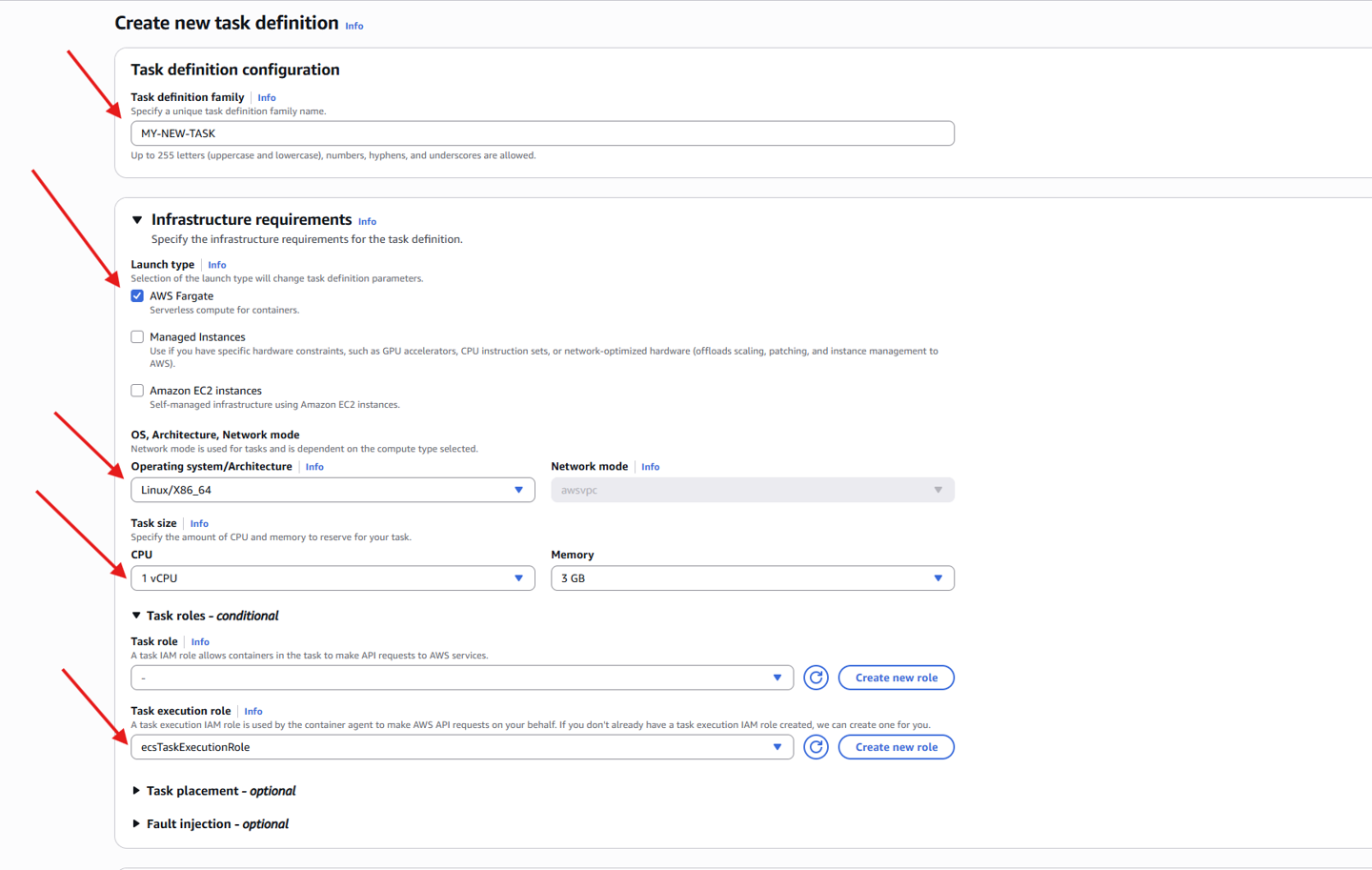

GUI: ECS → Create new task definition

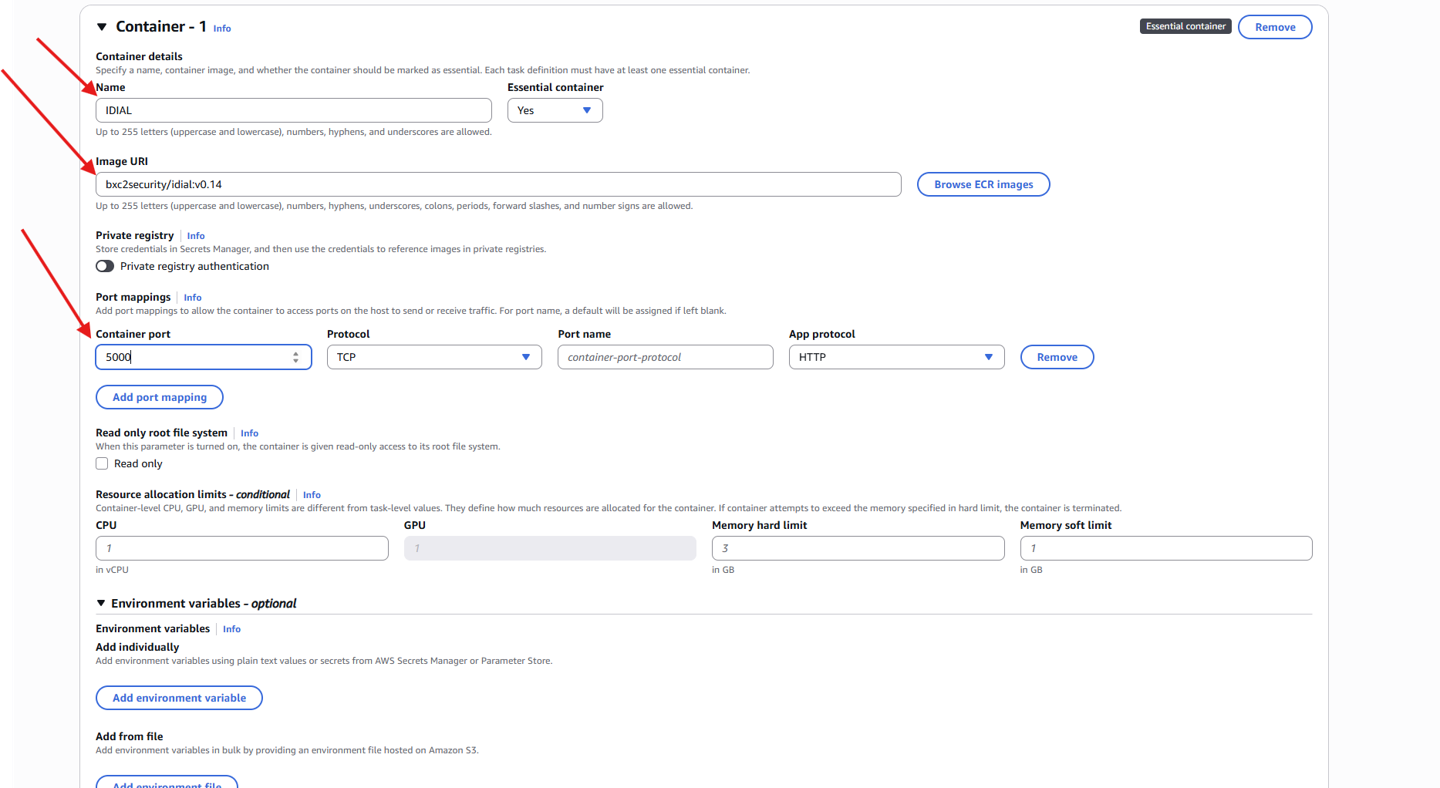

4.1 Container Configuration

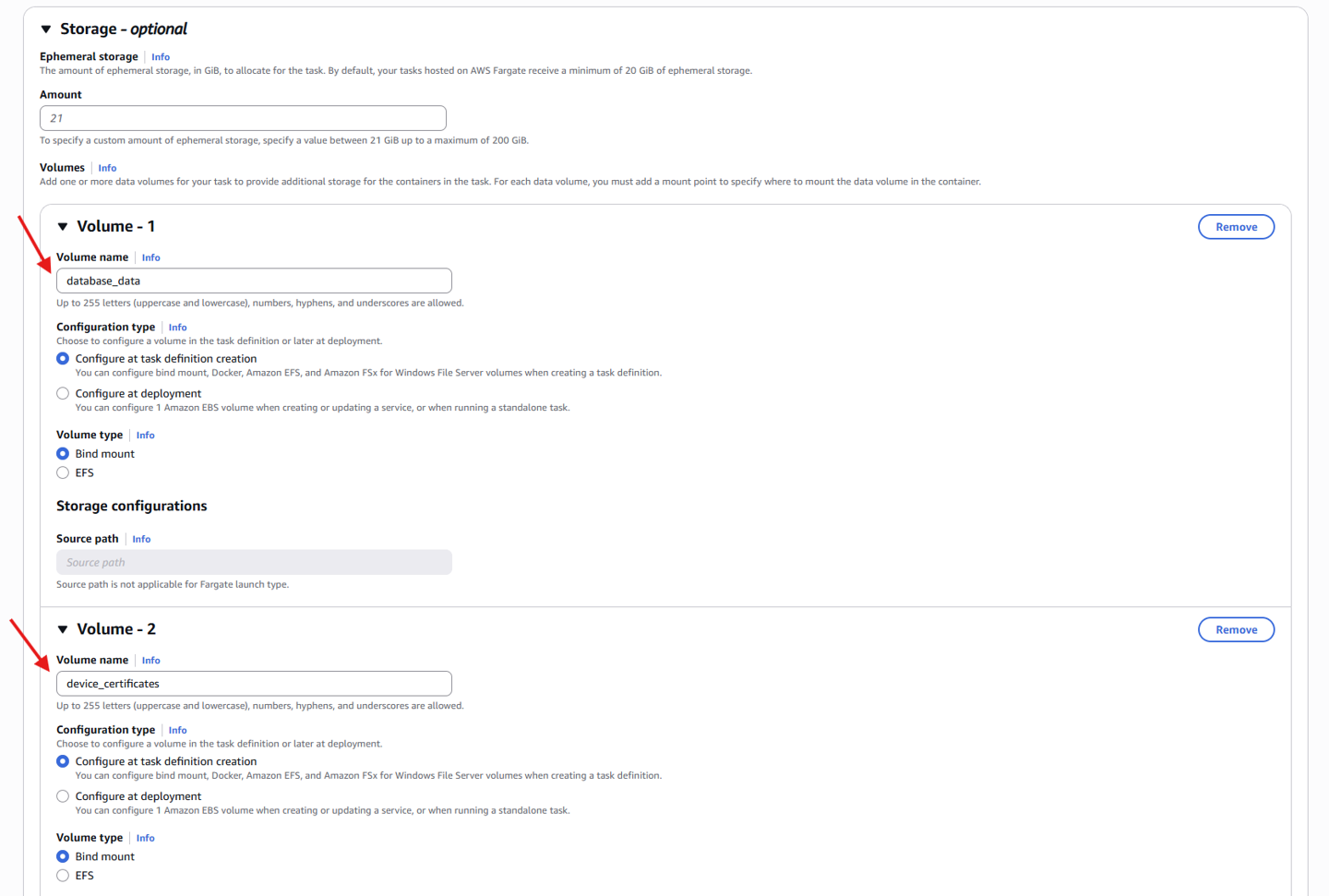

4.2 Volumes

Ephemeral Storage

Both containers use ephemeral storage. Data is lost on task restart. For persistence, use EFS.

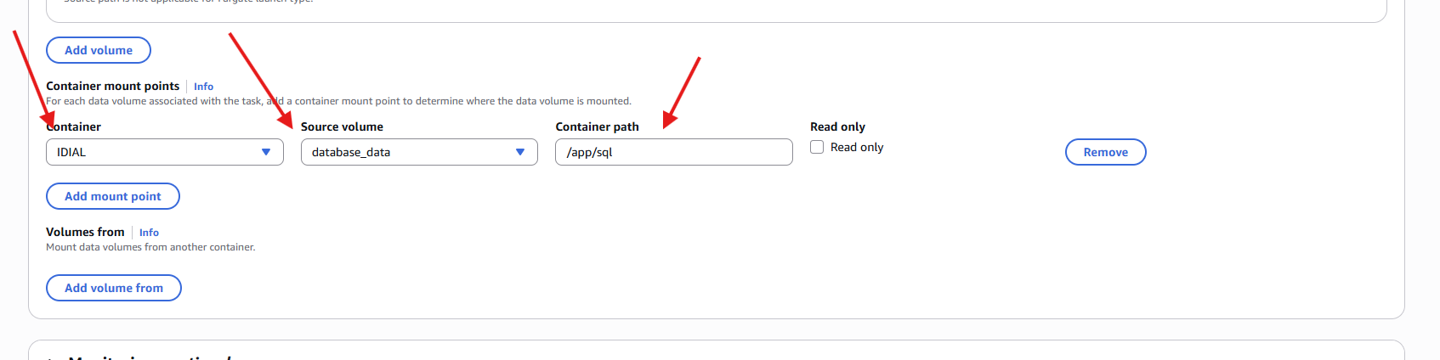

Volume	Container	Path
database_data	IDIAL	/app/sql
device_certificates	IDIAL	/app/certs
api_key	IDIAL	/app/secrets
rest_tls	IDIAL	/app/tls
idial_webapp_runtime_data	Web_Backend	/app/runtime_data
idial_webapp_logs	Web_Backend	/app/logs
idial_webapp_config	Web_Backend	/app/config

---

5. Configure Security Group

Port	Protocol	Source	Purpose
5000	TCP	Your IP /32	REST API
5555	TCP	Your IP /32	Web UI

aws ec2 authorize-security-group-ingress \
  --group-id <SECURITY_GROUP_ID> \
  --ip-permissions '[
    {"IpProtocol":"tcp","FromPort":5555,"ToPort":5555,"IpRanges":[{"CidrIp":"<YOUR_IP>/32"}]},
    {"IpProtocol":"tcp","FromPort":5000,"ToPort":5000,"IpRanges":[{"CidrIp":"<YOUR_IP>/32"}]}
  ]'

---

6. Create and Start Service

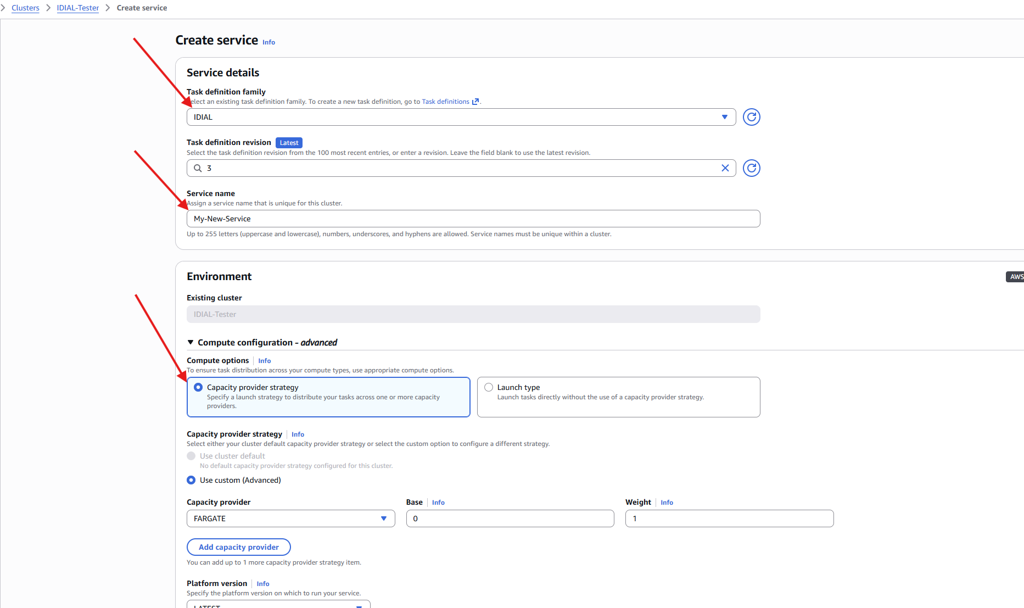

GUI: ECS → Clusters → IDIALCluster → Services → Create

6.1 Determine Subnet & Security Group

aws ec2 describe-subnets ...
aws ec2 describe-security-groups ...

warning

Use a public subnet (MapPublicIpOnLaunch = true).

6.2 Configure ecs-service.json

{
  "cluster": "IDIALCluster",
  "serviceName": "idial",
  "desiredCount": 1,
  "launchType": "FARGATE"
}

6.3 Create Service

aws ecs create-service --cli-input-json file://ecs-service.json

6.4 Check Status

aws ecs describe-services --cluster IDIALCluster --services idial

---

7. Access IDIAL

Find the public IP of the running task:

aws ecs list-tasks --cluster IDIALCluster --service-name idial
aws ecs describe-tasks --cluster IDIALCluster --tasks <TASK_ARN>

Then open:

https://<PUBLIC_IP>:5555

---

8. Logs

aws logs describe-log-streams --log-group-name /ecs/idial
aws logs get-log-events --log-group-name /ecs/idial --log-stream-name <STREAM>

---

9. IDIAL API Key

On first start, the API key is printed to the container logs:

IDIAL API key (save this now): XXXXX

Save immediately

The API key is lost on task restart. Copy it from the logs immediately after first start.

---

Troubleshooting

AccessDeniedException

The ECS task cannot read secrets. Check the IAM policy in section 2.2 – verify ARNs and wildcard suffix.

401 Unauthorized

Wrong DockerHub credentials in Secrets Manager. Update the DockerHub secret with a valid Personal Access Token.

ERR_EMPTY_RESPONSE

• Ensure you are using HTTPS (https://, not http://)
• Check that the Security Group allows inbound TCP on port 5555 from your IP
• Check the container logs: aws logs get-log-events ...

IP Changed

If your public IP changes, update the Security Group:

# Remove old rule
aws ec2 revoke-security-group-ingress \
  --group-id <SG_ID> \
  --ip-permissions '[{"IpProtocol":"tcp","FromPort":5555,"ToPort":5555,"IpRanges":[{"CidrIp":"<OLD_IP>/32"}]},{"IpProtocol":"tcp","FromPort":5000,"ToPort":5000,"IpRanges":[{"CidrIp":"<OLD_IP>/32"}]}]'

# Add new rule
aws ec2 authorize-security-group-ingress \
  --group-id <SG_ID> \
  --ip-permissions '[{"IpProtocol":"tcp","FromPort":5555,"ToPort":5555,"IpRanges":[{"CidrIp":"<NEW_IP>/32"}]},{"IpProtocol":"tcp","FromPort":5000,"ToPort":5000,"IpRanges":[{"CidrIp":"<NEW_IP>/32"}]}]'
